Seat 009

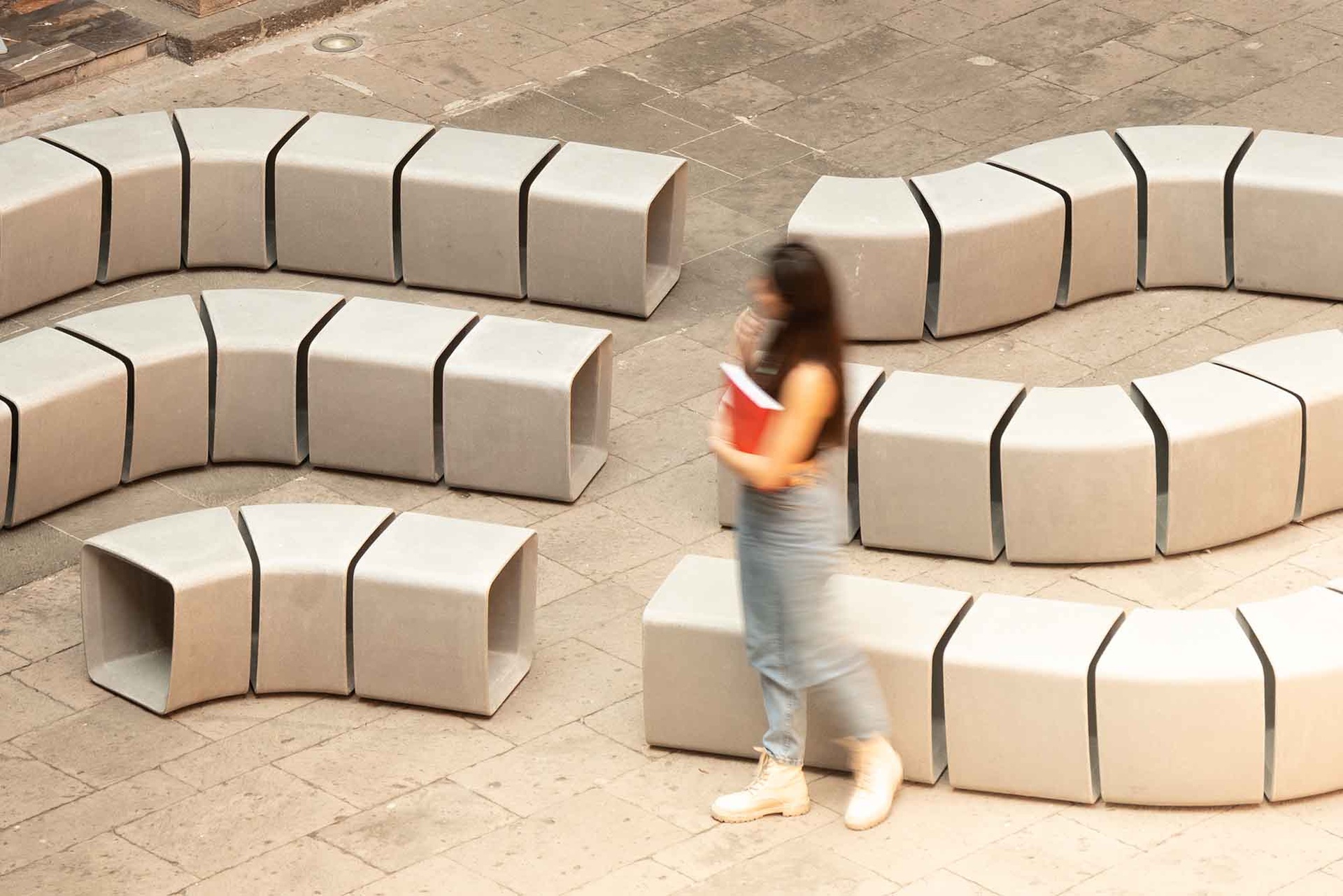

The AS-009 is a modular seating system made of polymer concrete that encourages interaction with public space through its utilitarian configuration, providing any place where it is located with great versatility and visual appeal. The system consists of 2 different modules, one of them straight and the other curved, both with the same angled formal language that allows multiple configurations to be generated in an iconic and unified way from their repetition, from completely straight segments to circular or serpentine geometries that play with any space, including random individual arrangements. At the center of each module, is a void that provides a contrasting visual lightness with the piece's polymer concrete volume. The design and versatility of this seat allow it to blend in with practically any environment, making the experience of social interaction in public spaces more enjoyable.
Resource Download


CAD Technical drawing:
PDF Technical file:
Sustainability data sheet:

Specs

General measures​

Color White o Gray BKT 3 o Green o Turquoise o Blue
Fixation Fixed o Detachable
Type Straight o Curved
Material Polymer concrete
Finishes smooth finish
Dimensions 41 cm x 39 cm x 44 cm
Manufacturing Polymeric concrete
Author Industrial design No. 56466 and 56467 In compliance with the provisions of article 409 of the Federal Property Protection Law Industrail, it is stated and made public knowledge that the product and designs reproduced below are protected before the Institute Mexican Industrial Property with registration number 56466 INDUSTRIAL MODEL OF AREA DELIMITING ELEMENT, whose owner is RODRIGO VÁZQUEZ ORTEGA; rights that are in force and having all their legal effects.
Seat 009
Materials

Polymer Concrete

Polymeric concrete is a material made with different mineral aggregates (sand, gravel, gravel, quartz, marble) bound by a synthetic resin and reinforced with fiberglass, which makes it an extremely resistant and lightweight material compared to concrete. conventional.

Technical specifications.

    High compressive strength (Average 800 kg/cm2)

    Modulus of Rupture (Average 247 kg/cm2) ASTM C-78

    Water absorption (Average 0.136%)

    Does not conduct electricity "Dielectric"

    Excellent resistance to chemical corrosion by contact with solvents, fuels and oils, etc.

Maintenance

Cleaning: Water with some diluted detergent or degreaser, which does not contain abrasive materials, can be helped by using medium-hard plastic brushes (avoid metal ones, sandpaper or abrasive discs). It is also possible to use solvents.

Coatings: Application of paste and/or paint to rehabilitate the benches due to deterioration derived from the conditions of exposure to the environment and service to which they are subjected. (Contact our sales team

Polished: To revive the color and leave the surface smooth.

Sustainability 2020


Contributing to global efforts in sustainability, the year 2020 at BKT street furniture marks the beginning of a commitment to sustainability, adding this component to our vision as an integrating element of our practice. We want to understand the effects that our products have throughout their life cycle and see how our organization influences or is influenced by the expectations of sustainable development.
Know how we are achieving it.
